Analysis
I find file formats to be a pretty fascinating topic. Having written parsers for common formats like Mach-O binaries, Android DEX files, PNG and JPG images, PDF documents, and more, I've started to notice commonalities across file specs.
Being able to visualize files in a consistent way sounds like a neat experiment, so with the help of Claude, that's exactly what I did:
#!/usr/bin/env python3
"""
Visualize arbitrary files as fixed-size square images with color options.
Modes:
byte – grayscale-like (byte intensity), optionally colored via colormap
entropy – local entropy heatmap
rgb-bytes – interpret every 3 bytes as an RGB pixel
"""
from __future__ import annotations
import argparse
from pathlib import Path
from typing import Literal
import numpy as np
import matplotlib.pyplot as plt
Mode = Literal["byte", "entropy", "rgb-bytes"]
def load_bytes(path: Path) -> np.ndarray:
data = path.read_bytes()
if not data:
raise ValueError(f"File is empty: {path}")
return np.frombuffer(data, dtype=np.uint8)
# -----------------------------
# BYTE & ENTROPY GRID FUNCTIONS
# -----------------------------
def make_byte_grid(data: np.ndarray, size: int) -> np.ndarray:
total = size * size
if data.size == 1:
arr = np.full(total, data[0], dtype=np.float32)
else:
idx = np.linspace(0, data.size - 1, total, dtype=np.int64)
arr = data[idx].astype(np.float32)
return (arr / 255.0).reshape(size, size)
def entropy_of_chunk(chunk: np.ndarray) -> float:
if chunk.size == 0:
return 0.0
counts = np.bincount(chunk, minlength=256).astype(np.float32)
total = counts.sum()
if total <= 0:
return 0.0
p = counts / total
p_nonzero = p[p > 0]
h = -(p_nonzero * np.log2(p_nonzero)).sum()
return float(h / 8.0) # normalize to [0,1]
def make_entropy_grid(data: np.ndarray, size: int) -> np.ndarray:
chunks = np.array_split(data, size * size)
values = np.array([entropy_of_chunk(chunk) for chunk in chunks], dtype=np.float32)
return values.reshape(size, size)
# -----------------------------
# RGB MODE
# -----------------------------
def make_rgb_grid(data: np.ndarray, size: int) -> np.ndarray:
"""
Interpret file as RGB triples:
[byte0, byte1, byte2] → (R, G, B)
Missing bytes are padded with zeros.
Output shape: (size, size, 3)
"""
total_pixels = size * size
total_bytes_needed = total_pixels * 3
if data.size < total_bytes_needed:
# pad zeros at the end
padded = np.pad(data, (0, total_bytes_needed - data.size))
else:
padded = data[:total_bytes_needed]
rgb = padded.reshape(total_pixels, 3).astype(np.float32) / 255.0
return rgb.reshape(size, size, 3)
# -----------------------------
# RENDERING
# -----------------------------
def plot_grid(grid, mode: Mode, colormap: str | None, out_path: Path, title: str):
plt.figure(figsize=(6, 6))
if mode in ("byte", "entropy"):
plt.imshow(grid, cmap=colormap, interpolation="nearest")
else: # rgb-bytes
plt.imshow(grid, interpolation="nearest")
plt.axis("off")
plt.tight_layout(pad=0)
plt.savefig(out_path, bbox_inches="tight", pad_inches=0, dpi=300)
plt.close()
# -----------------------------
# CLI
# -----------------------------
def parse_args():
parser = argparse.ArgumentParser(description="Visualize file structure with color.")
parser.add_argument("file", type=Path)
parser.add_argument("--mode", "-m",
choices=["byte", "entropy", "rgb-bytes"],
default=None,
help="Visualization mode (default: generates all three)")
parser.add_argument("--size", "-s", type=int, default=256)
parser.add_argument("--colormap", "-c",
type=str,
default="viridis",
help="Matplotlib colormap name (ignored in rgb-bytes mode).")
parser.add_argument("--out", "-o", type=Path,
help="Output path (only valid when --mode is specified)")
return parser.parse_args()
def main():
args = parse_args()
path: Path = args.file
# Determine which modes to generate
if args.mode:
modes = [args.mode]
else:
modes = ["byte", "entropy", "rgb-bytes"]
# Validate --out can only be used with single mode
if args.out and len(modes) > 1:
print("Error: --out can only be used when --mode is specified")
return
data = load_bytes(path)
# Generate visualization for each mode
for mode in modes:
# Auto-scale grid size if file is too small
size = args.size
if mode == "byte":
# Byte mode needs 1 byte per pixel (no repeating)
max_size = max(1, int(data.size ** 0.5))
if size > max_size:
size = max_size
print(f"Note: File too small for {args.size}×{args.size} byte mode, using {size}×{size}")
elif mode == "rgb-bytes":
# RGB needs 3 bytes per pixel
max_size = max(1, int((data.size / 3) ** 0.5))
if size > max_size:
size = max_size
print(f"Note: File too small for {args.size}×{args.size} RGB mode, using {size}×{size}")
elif mode == "entropy":
# Entropy needs at least 16 bytes per chunk for meaningful analysis
max_size = max(1, int((data.size / 16) ** 0.5))
if size > max_size:
size = max_size
print(f"Note: File too small for {args.size}×{args.size} entropy mode, using {size}×{size}")
if mode == "byte":
grid = make_byte_grid(data, size)
colormap = args.colormap
elif mode == "entropy":
grid = make_entropy_grid(data, size)
colormap = args.colormap
elif mode == "rgb-bytes":
grid = make_rgb_grid(data, size)
colormap = None # ignored in rgb mode
if args.out:
out_path = args.out
else:
# Save to output/ folder in current directory
output_dir = Path.cwd() / "output"
output_dir.mkdir(exist_ok=True)
filename = f"{path.stem}.{mode}.{size}.png"
out_path = output_dir / filename
title = f"{path.name} ({mode}, {size}px)"
plot_grid(grid, mode, colormap, out_path, title)
print(f"Saved: {out_path}")
if __name__ == "__main__":
main()This script produces three images:
- Bytes visualized with a colormap
- Entropy analysis of byte chunks
- Bytes interpreted as RGB color values
Results
JPG
In the spirit of Christmas, let's inspect this image:

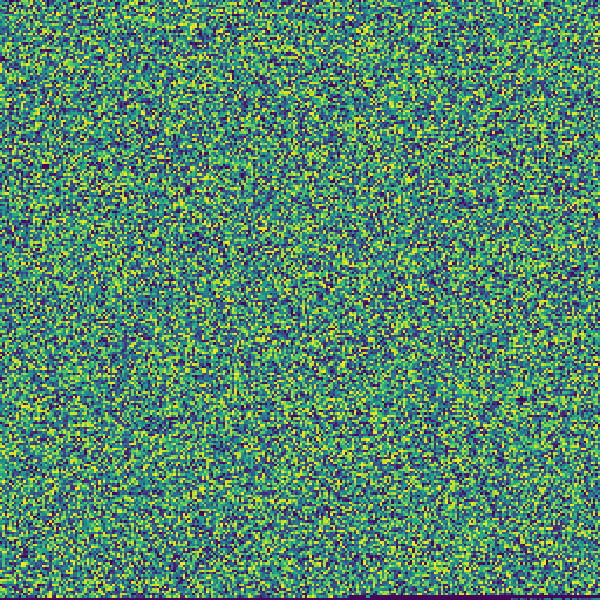

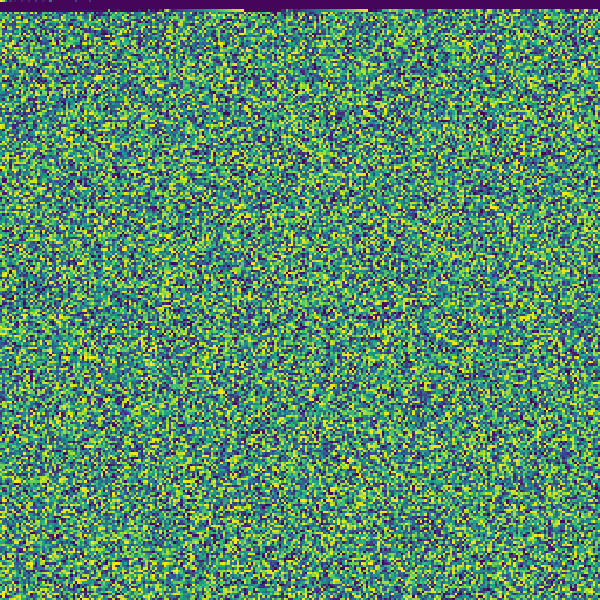

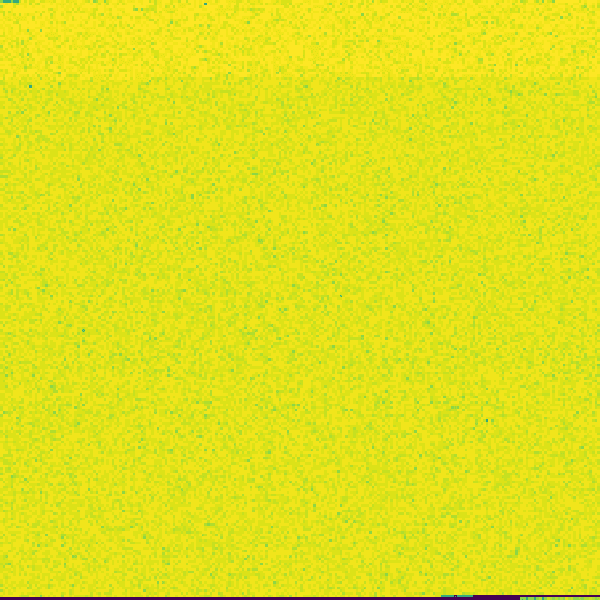

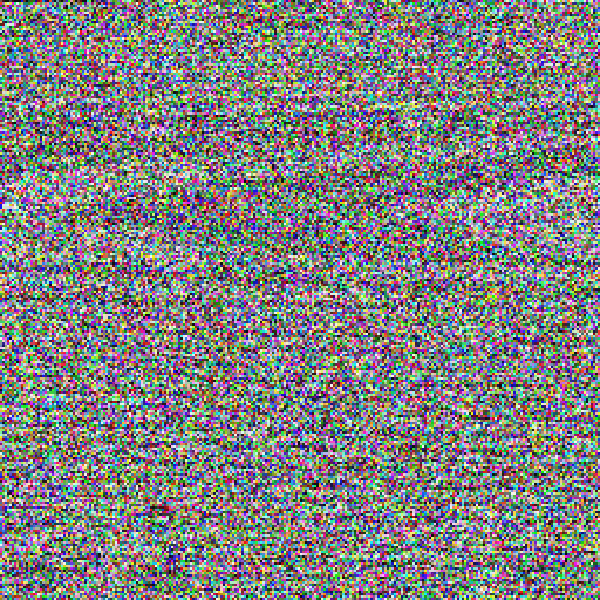

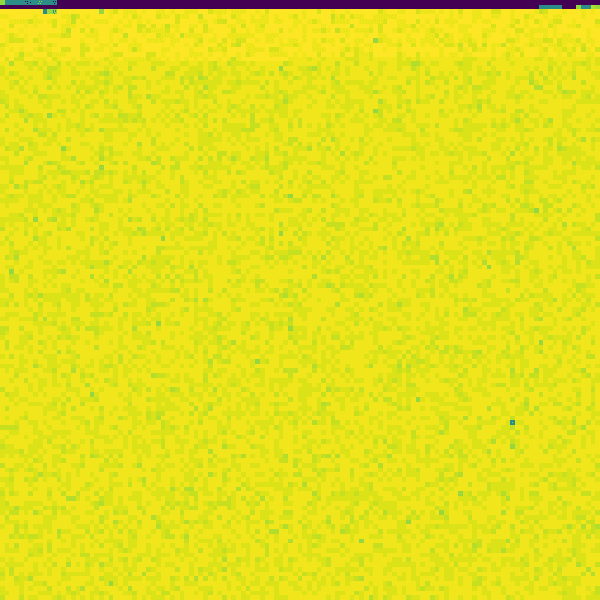

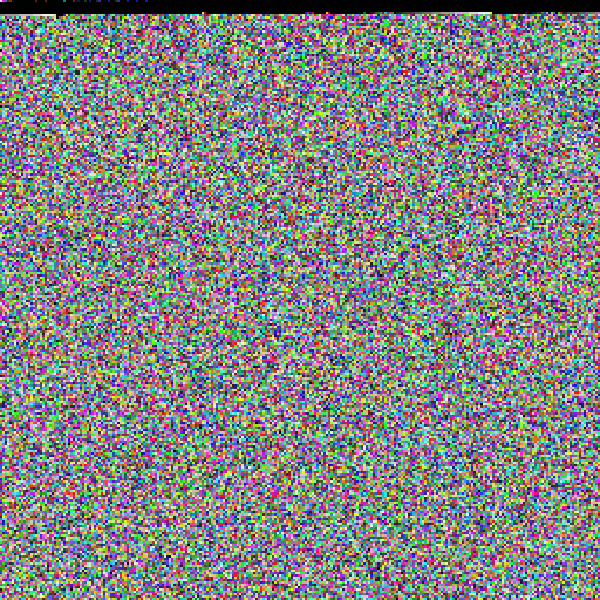

And here it is visualized with our script:
It turns out image files are actually not that interesting. Other than the header information at the start, it's largely a mix of random-looking data.
PNG
Converting our image above into PNG:
magick convert /Users/telkins/Downloads/christmas-tree.jpg /Users/telkins/Downloads/christmas-tree-2.png
I'm surprised to see some kind of data added at the end of the file, I didn't realize that was allowed in the spec.

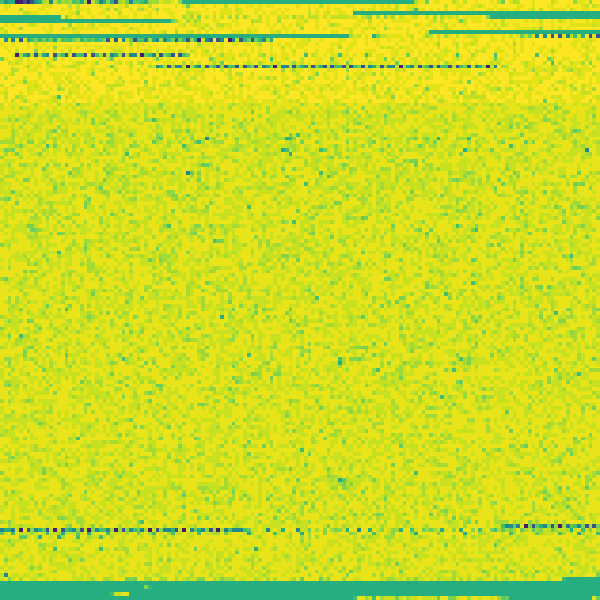

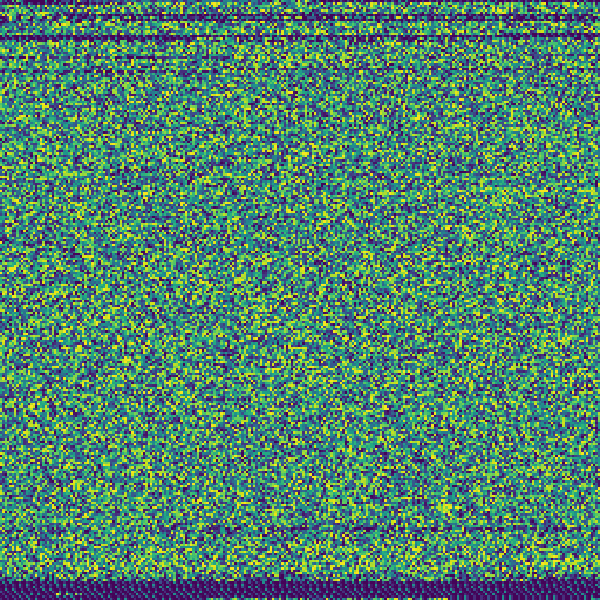

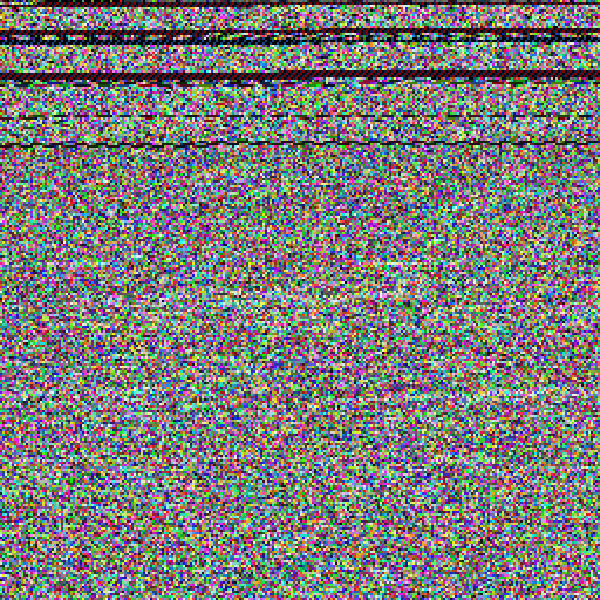

Testing on a different image from my generated iPhone:
You can see some more patterns. I tested a few more images and PNG has a decent amount of variation, some of which have no data appended to the end.
Mach-O

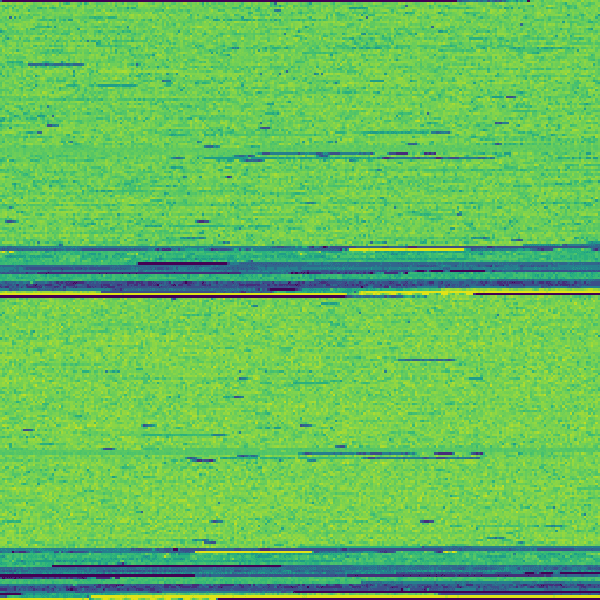

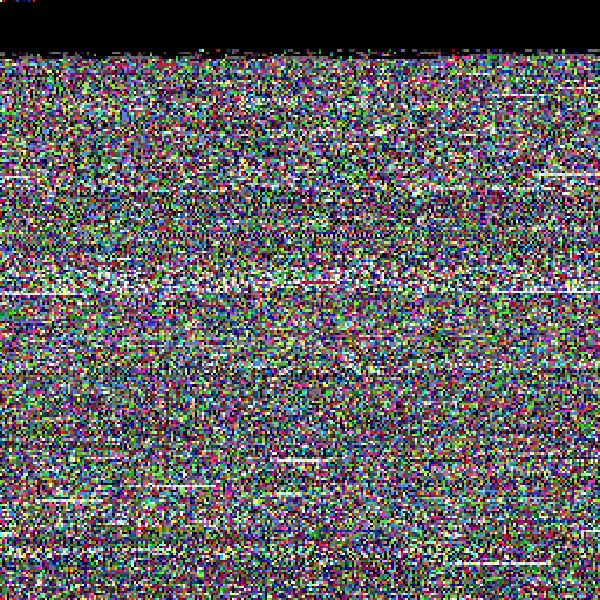

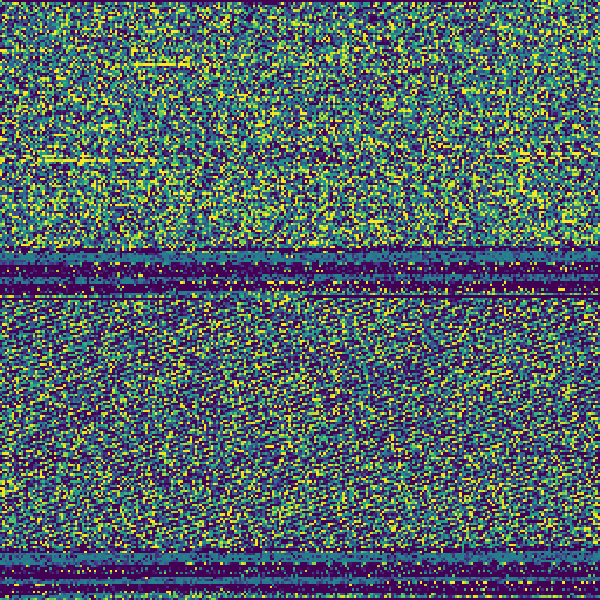

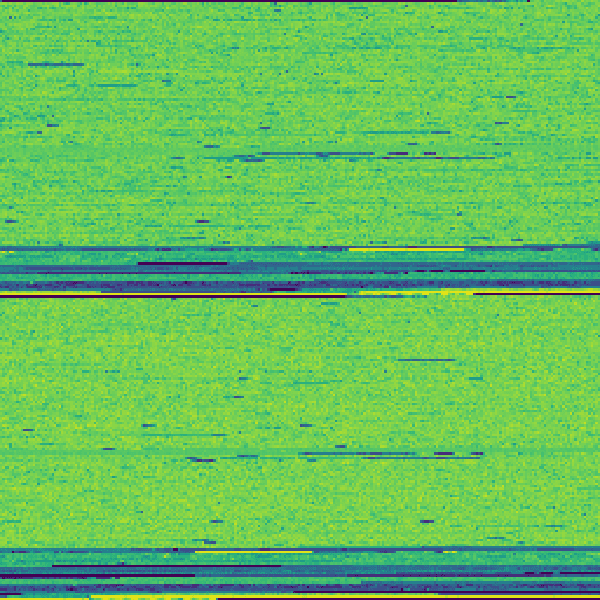

What about something like the vim executable?
file /usr/bin/vim
/usr/bin/vim: Mach-O universal binary with 2 architectures: [x86_64:Mach-O 64-bit executable x86_64] [arm64e]
/usr/bin/vim (for architecture x86_64): Mach-O 64-bit executable x86_64
/usr/bin/vim (for architecture arm64e): Mach-O 64-bit executable arm64e
Right off the bat, you can see what appear to be the two architectures for x86_64 and arm64e packed into a single FAT binary.
Mach-O DWARF

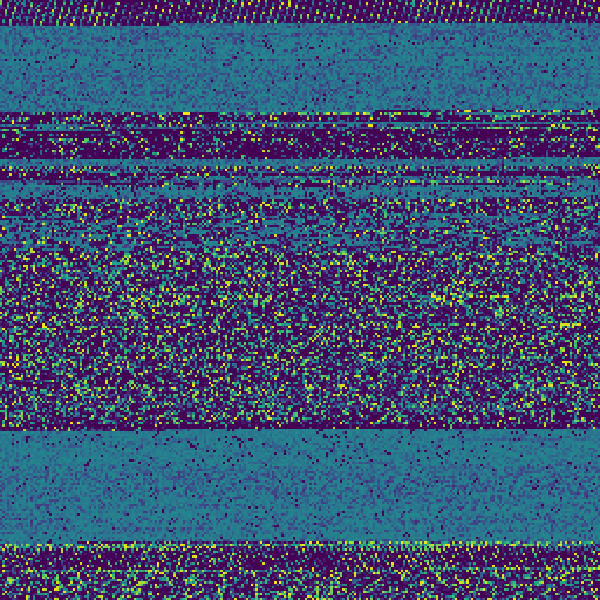

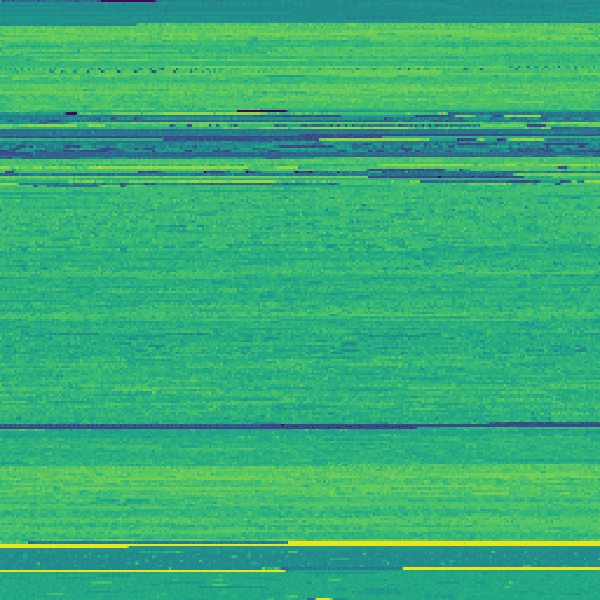

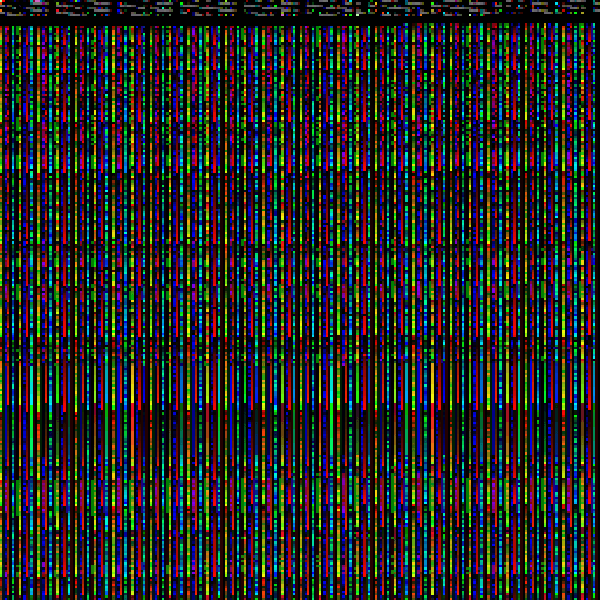

Naturally, I'm also curious what a DWARF debugging file looks like. This one is probably my favorite:
DEX

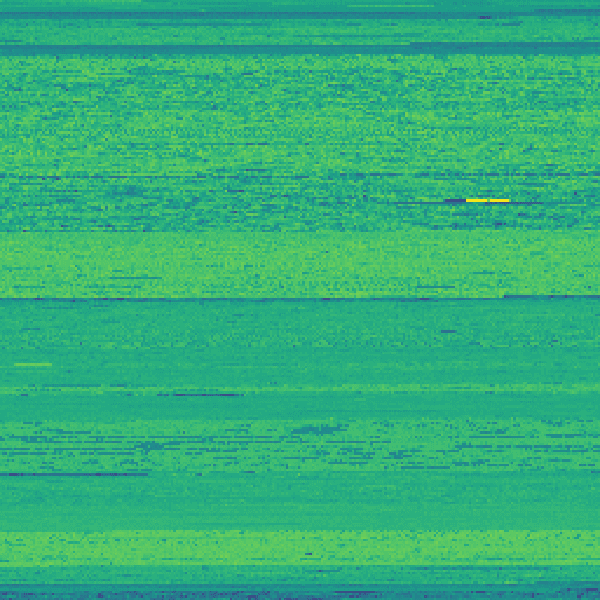

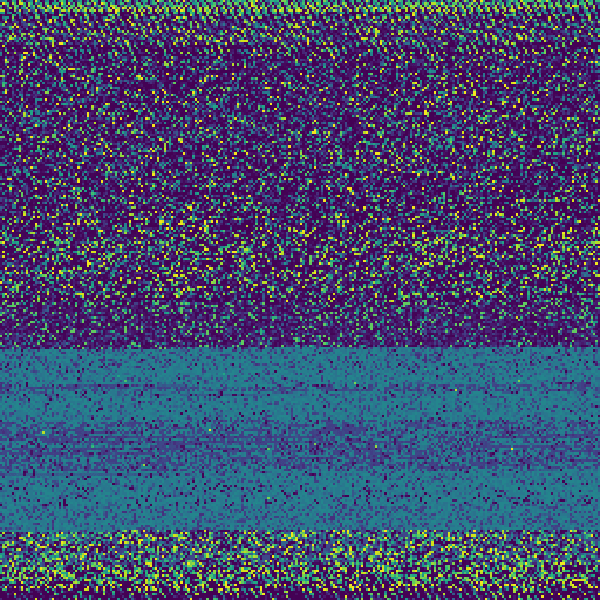

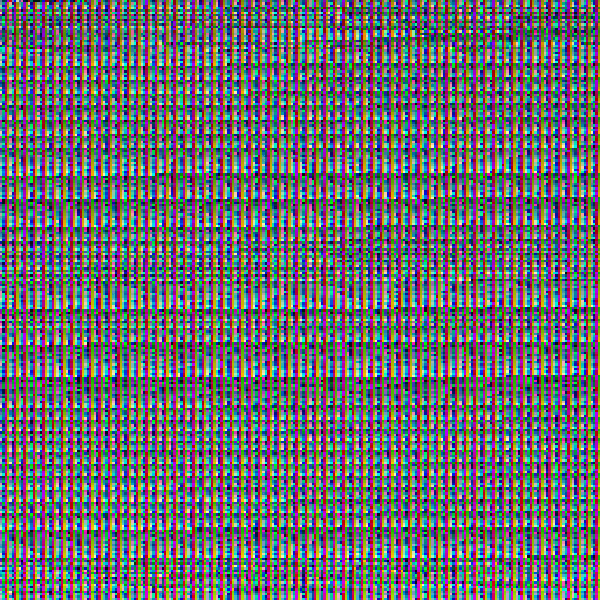

And to cater to the Android crowd, this is the DEX file from our HackerNews app:
MP3

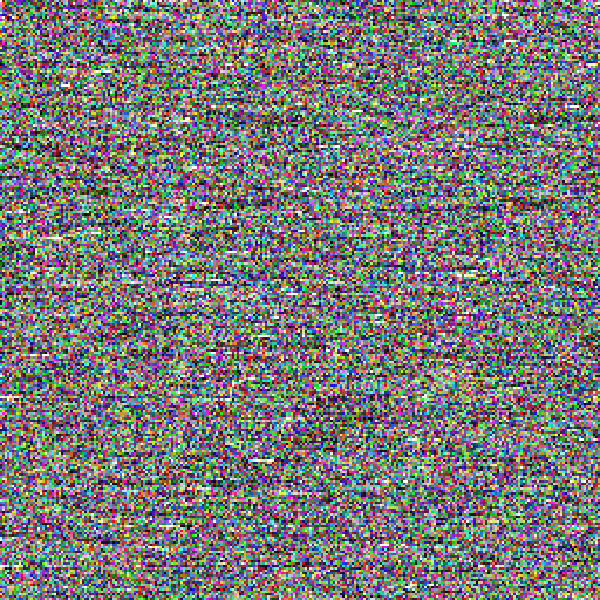

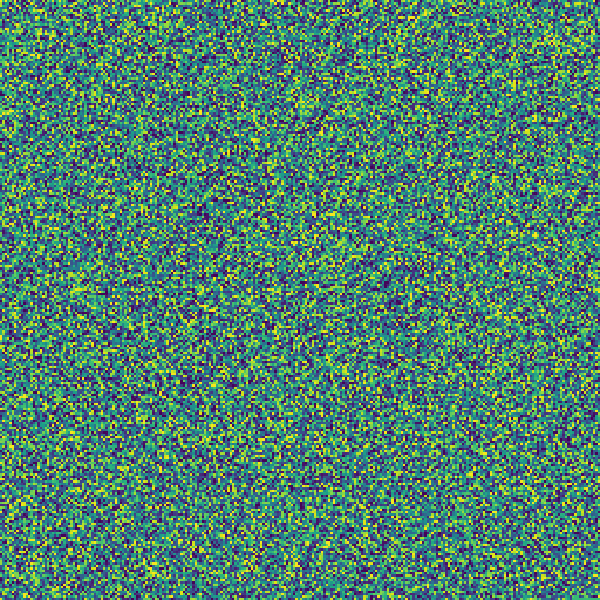

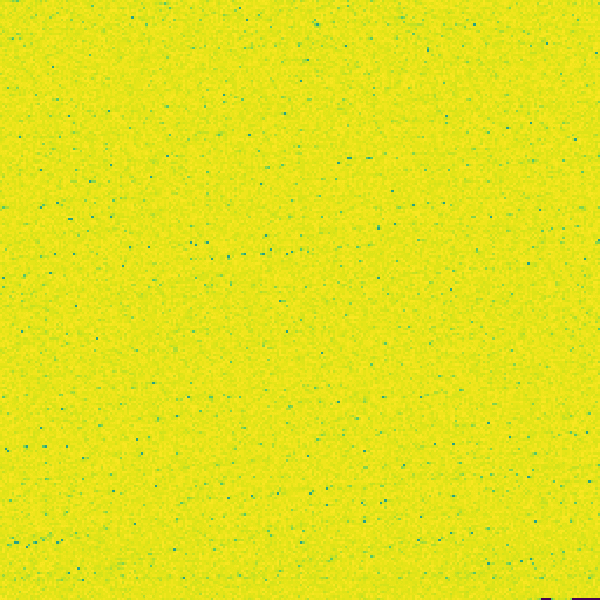

I found this retro arcade game music:
Unsurprisingly, there aren't many patterns here since MP3 uses compression.
EPUB

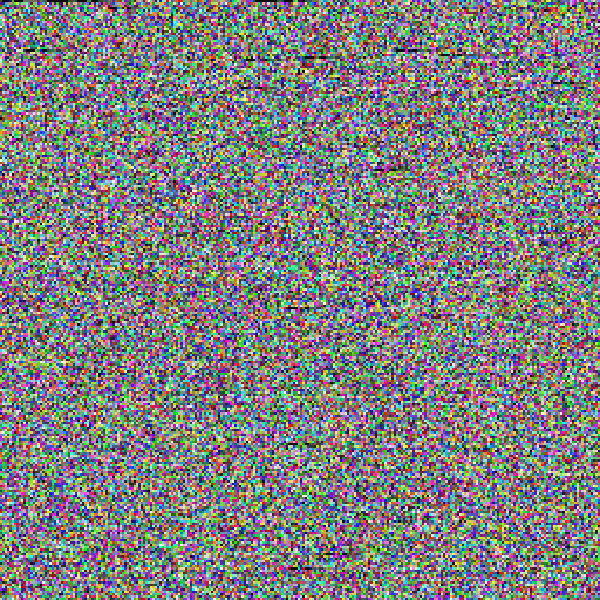

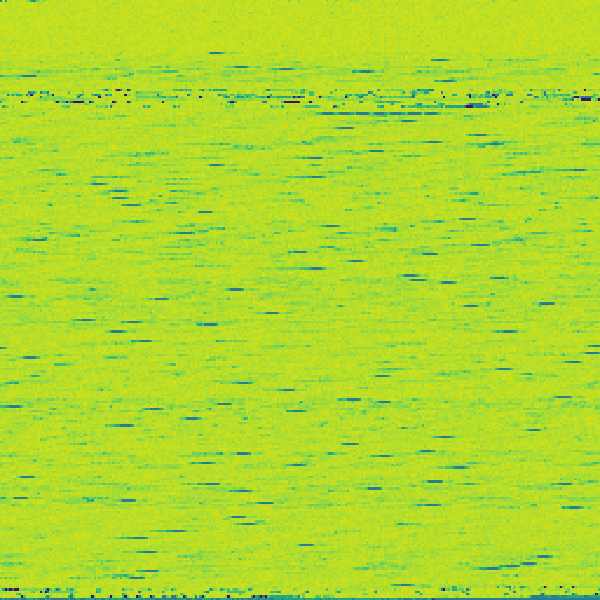

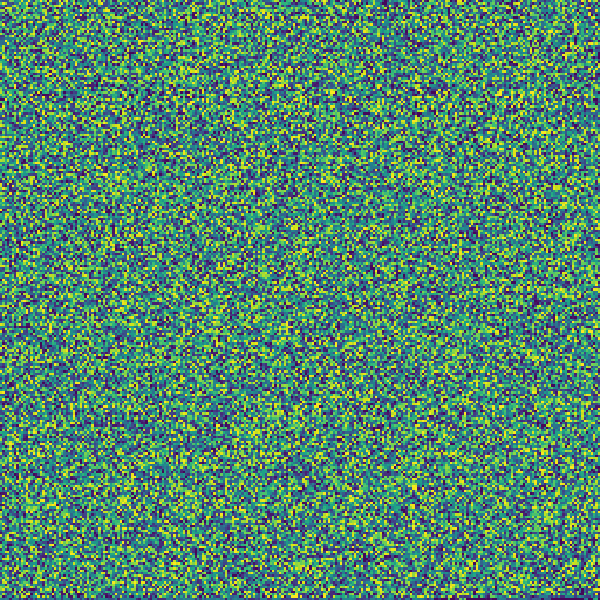

In case you are curious what the Designing Data-Intensive Applications book looks like, don't worry, I have you covered:
TXT (with GZIP)

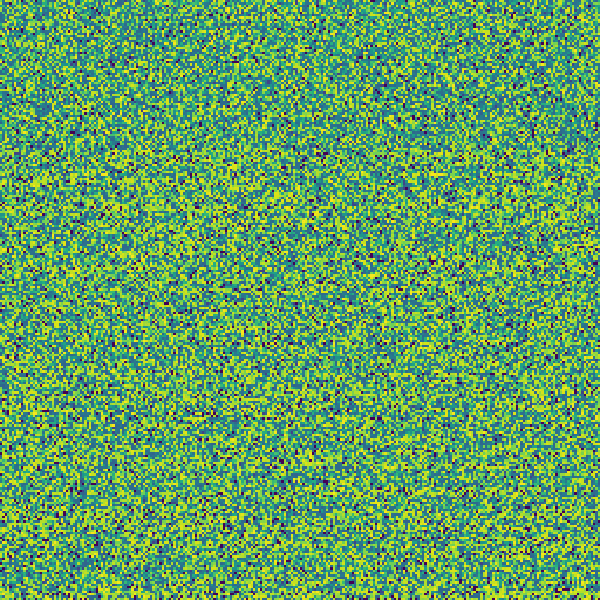

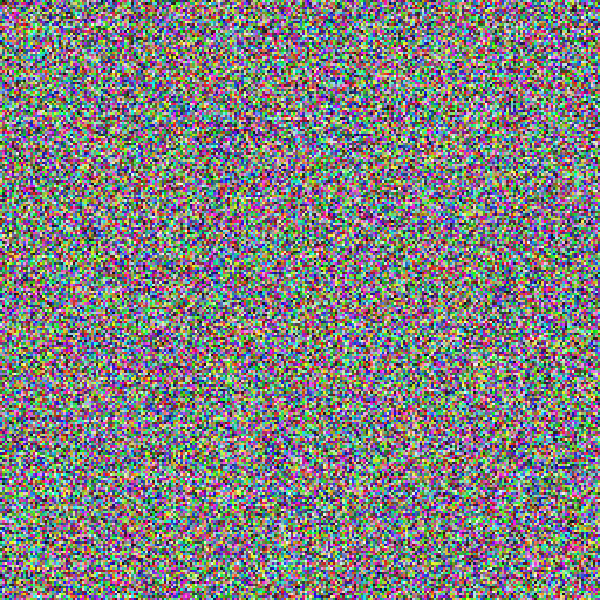

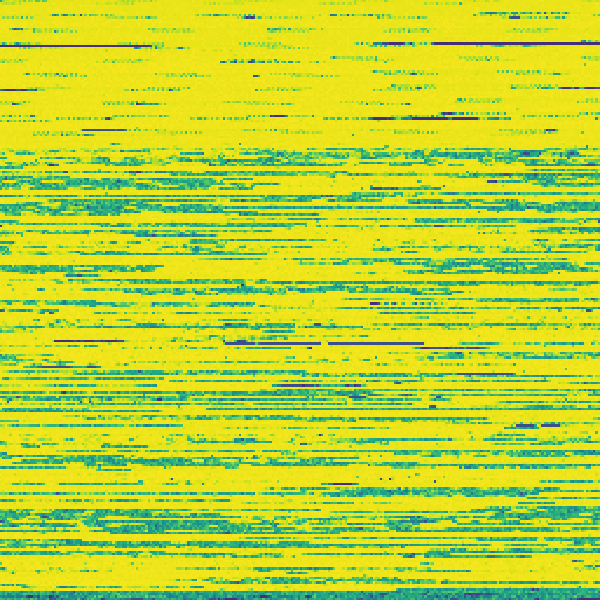

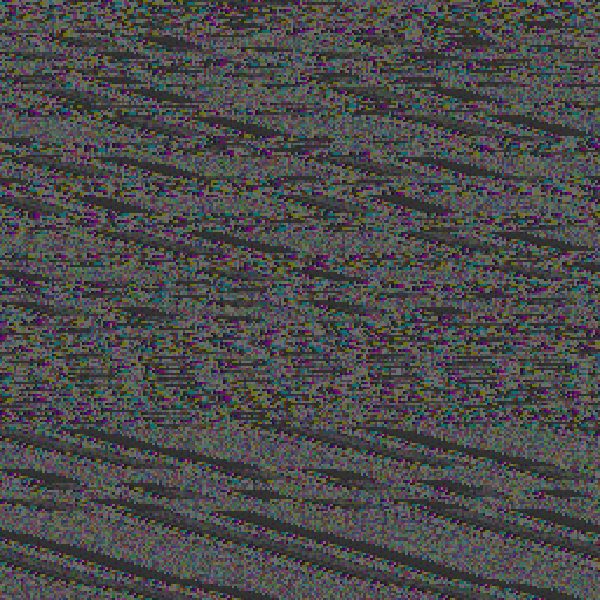

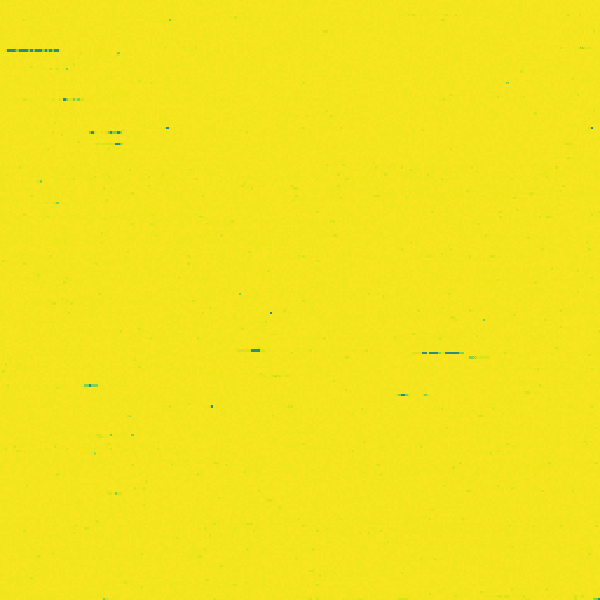

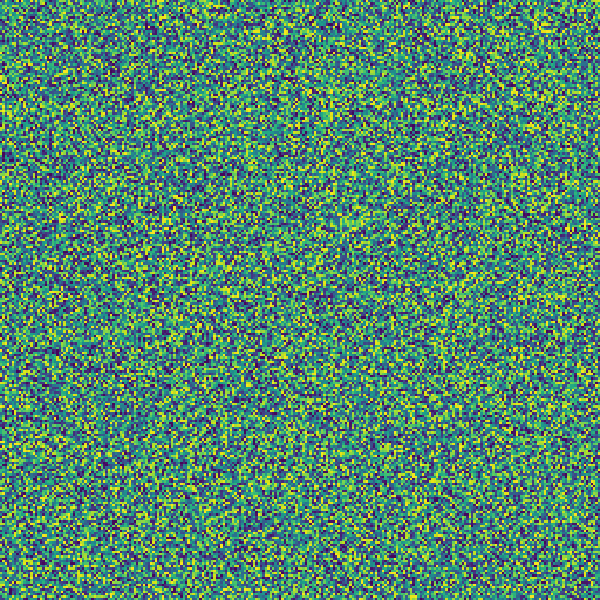

I happen to have a text file from ICANN with a list of every registered .app domain. Here's the before/after of it being gzip'd:
As expected, the compressed version has higher entropy.
Takeaways
I didn't really know what to expect going into this. I did think I would find more variations between many of the file formats, but in hindsight it makes sense that most formats are really just a small header section followed by the data content. For more structured binary formats like Mach-O and DEX, the sections are much more visible.
Anyway, hope you found this interesting!
